PhoXi® 3D Scanner S

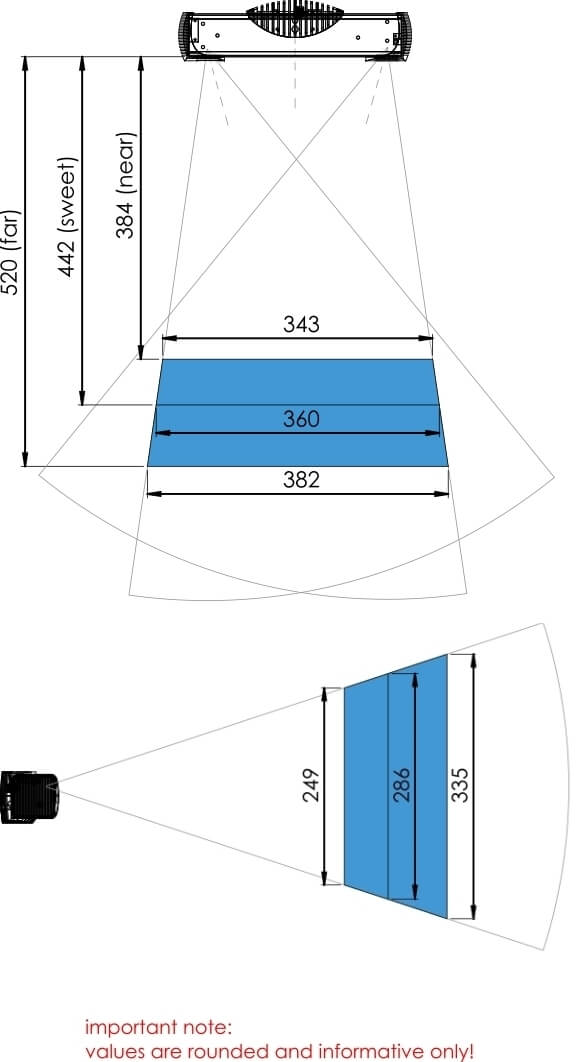

Average scanning volume:
360 x 290 x 70 mm.
Orders and inquiries at sales@photoneo.com
Download: PhoXi 3D Scanner – User Manual
| Parameter | Values | |
|---|---|---|
| Mode | High res mode | High speed |
| Depth Map resolution (independent measurements) | 3.2M points | 0.8M points |
| Point size | 0.16 mm | 0.32 mm |
| Absolute accuracy | ≤ 50 µm | ≤ 50 µm |
| Z noise | ≤ 50 µm | ≤ 50 µm |
| FPS | 5 fps | 6.6 fps |
| Data acquisition time – best case: white diffuse objects |
200 ms | 150 ms |
| Data acquisition time – worst case: dark objects |
2 s | 1 s |
| 3D points throughput | 16 Million points per second | |
| GPU | NVIDIA Maxwell™ 1 TFLOPS with 256 NVIDIA® CUDA® Cores |
|
| Scanner Dimensions | 77 x 68 x 296 mm |
| Baseline | 230 mm |
| Minimal recommended distance | 384 mm |
| Maximal recommended distance | 520 mm |
| Weight | 900 g |
For more information please visit also our Wiki page.
PhoXi Control Software
|
API
|
You can find more information about our technology at technology page.
